Toolchain: C to Bare-Metal Assembly

Most compiled languages (C/C++/Rust/Go, etc.) translate source to an executable through preprocessing/compilation, assembling, and linking. Toolchains (GCC, LLVM/Clang, etc.) can emit assembly for debugging.

However, the generated assembly is often too complex for a simple educational CPU because it may depend on a standard library, runtime, or OS system calls.

This section shows practical ways to generate bare-metal RISC-V assembly from a restricted subset of C.

Restrictions for “bare-metal friendly” C

When writing C for these labs:

• Do not include standard headers (stdio.h, stdlib.h, string.h, …) and do not call library functions (printf, rand, memset, …).
• Do not define global variables.
• Do not allocate heap memory (malloc/free).
• Ensure statements have observable effects (return values, memory writes). Otherwise the compiler may eliminate them as dead code.

Using GCC to generate bare-metal assembly

GCC is widely used and supports many architectures. If your host machine is not RISC-V, you typically use a cross compiler.

Install a RISC-V bare-metal GCC toolchain (names vary by distro), commonly riscv64-unknown-elf-gcc (it can still target riscv32):

• Debian/Ubuntu: sudo apt install gcc-riscv64-unknown-elf
• Fedora: sudo dnf install gcc-riscv64-linux-gnu
• Arch: install riscv64-unknown-elf-gcc from AUR
• macOS: Homebrew package riscv64-elf-gcc

Example version output:

$ riscv64-unknown-elf-gcc --version
riscv64-unknown-elf-gcc (14.2.0+19) 14.2.0
...

To compile aplusb.c into assembly aplusb.s:

riscv64-unknown-elf-gcc -march=rv32im -mabi=ilp32 -ffreestanding -O2 -S aplusb.c

Key flags (do not change casually):

• -march / -mabi: select ISA/ABI (wrong values may generate unsupported instructions).
• -O2: enable common optimizations.
• -S: emit assembly instead of an object/executable.
• -ffreestanding: prevent assumptions about standard library availability.

Example: simple add function

int aplusb(int a, int b) {
  int sum = 0;
  for (int i = 0; i < 10; ++i)
    sum += i;
  return a + b + 19910000;
}

Code 4.1: C source (aplusb.c).

  .file   "aplusb.c"
  .option nopic
  .attribute arch, "rv32i2p1_m2p0"
  .attribute unaligned_access, 0
  .attribute stack_align, 16
  .text
  .align  2
  .globl  aplusb
  .type   aplusb, @function
aplusb:
  add     a0,a0,a1
  li      a5,19910656
  addi    a5,a5,-656
  add     a0,a0,a5
  ret
  .size   aplusb, .-aplusb
  .ident  "GCC: (14.2.0+19) 14.2.0"
  .section        .note.GNU-stack,"",@progbits

Code 4.2: GCC-generated assembly (aplusb_gcc.s). In our labs, assembler directives starting with . can usually be ignored.

To run in Ripes, it is often convenient to remove ret (so it doesn’t jump to ra) and replace it with a self-loop:

aplusb:
  add     a0, a0, a1
  li      a5, 19910656
  addi    a5, a5, -656
  add     a0, a0, a5
.end:
  j       .end

Code 4.3: Ripes-friendly assembly (aplusb_ripes.s).

Questions

• In Code 4.1, why does the loop that accumulates sum not appear in the generated assembly?
• li and ret are pseudo-instructions. What real instructions do they expand to?
• Why does GCC use both li and addi to materialize the constant, instead of using a single instruction?
• Suppose you run Code 4.2 in Ripes with inputs a = 1 and b = 29.
  • Before execution starts, how should you initialize the relevant registers?
  • After the function finishes, from which register should you read the result?
  • If you click Run, will the simulation stop at the end of the function? Why?

Using Clang to generate bare-metal assembly

Clang/LLVM supports many targets. For simple bare-metal assembly emission, you can often avoid installing a full target sysroot.

Example command:

clang --target=riscv32-unknown-elf -march=rv32im -mabi=ilp32 -O2 -S -nostdlib -ffreestanding sum.c

Example: summing an integer array

int sum(int *p, int l) {
  int sum = 0;
  for (int i = 0; i < l; ++i)
    sum += p[i];
  return sum;
}

Code 4.4: C source (sum.c).

  .attribute  4, 16
  .attribute  5, "rv32i2p1_m2p0_zmmul1p0"
  .file   "sum.c"
  .text
  .globl  sum  # -- Begin function sum
  .p2align  2
  .type   sum,@function
sum:  # @sum
# %bb.0:
  li      a2, 0
  blez    a1, .LBB0_3
# %bb.1:
  slli    a1, a1, 2
  add     a1, a0, a1
.LBB0_2:  # =>This Inner Loop Header: Depth=1
  lw      a3, 0(a0)
  addi    a0, a0, 4
  add     a2, a3, a2
  bne     a0, a1, .LBB0_2
.LBB0_3:
  mv      a0, a2
  ret

Code 4.5: Clang-generated assembly (sum_clang.s).

sum:
  li      a2, 0
  blez    a1, .LBB0_3
  slli    a1, a1, 2
  add     a1, a0, a1
.LBB0_2:
  lw      a3, 0(a0)
  addi    a0, a0, 4
  add     a2, a3, a2
  bne     a0, a1, .LBB0_2
.LBB0_3:
  mv      a0, a2
.end:
  j       .end

Code 4.6: Ripes-friendly assembly (sum_ripes.s).

Questions

Assume you run Code 4.6 in Ripes. Think about the following:

• In the assembly, mv is a pseudo-instruction. What real instruction does it expand to?
• What parts of the C source correspond to basic blocks .LBB0_2 and .LBB0_3?
• Assume memory starting at address 0x0 stores 20 signed 32-bit integers. If you want to sum the last 10 integers, how should you initialize the input registers? After the function finishes, what are the values of the registers used by the code?

Using Compiler Explorer (godbolt.org)

Compiler Explorer is a free web tool to compile code in the browser and inspect generated assembly.

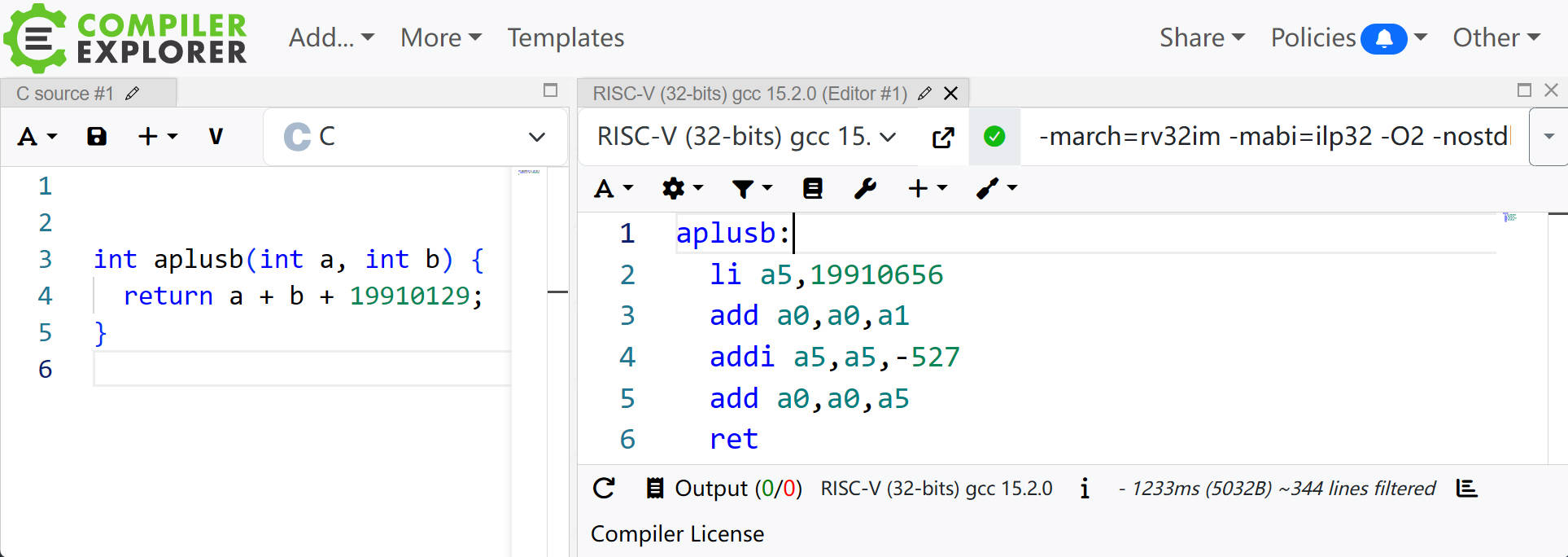

Figure 4.1: Compiler Explorer main UI.

To generate RISC-V assembly:

• Set language to C.
• Choose a RISC-V 32-bit compiler (any recent version is fine).
• Use compilation options like:
  • -march=rv32im -mabi=ilp32 -O2 -nostdlib -ffreestanding

Enable the “Filter…” options to hide directives/comments if you want a cleaner view.
