Ripes Cache View & Config

Ripes provides a configurable and visual cache simulator. By changing cache parameters and running small programs, you can observe hits/misses, fills, evictions, and statistics.

Cache configuration parameters

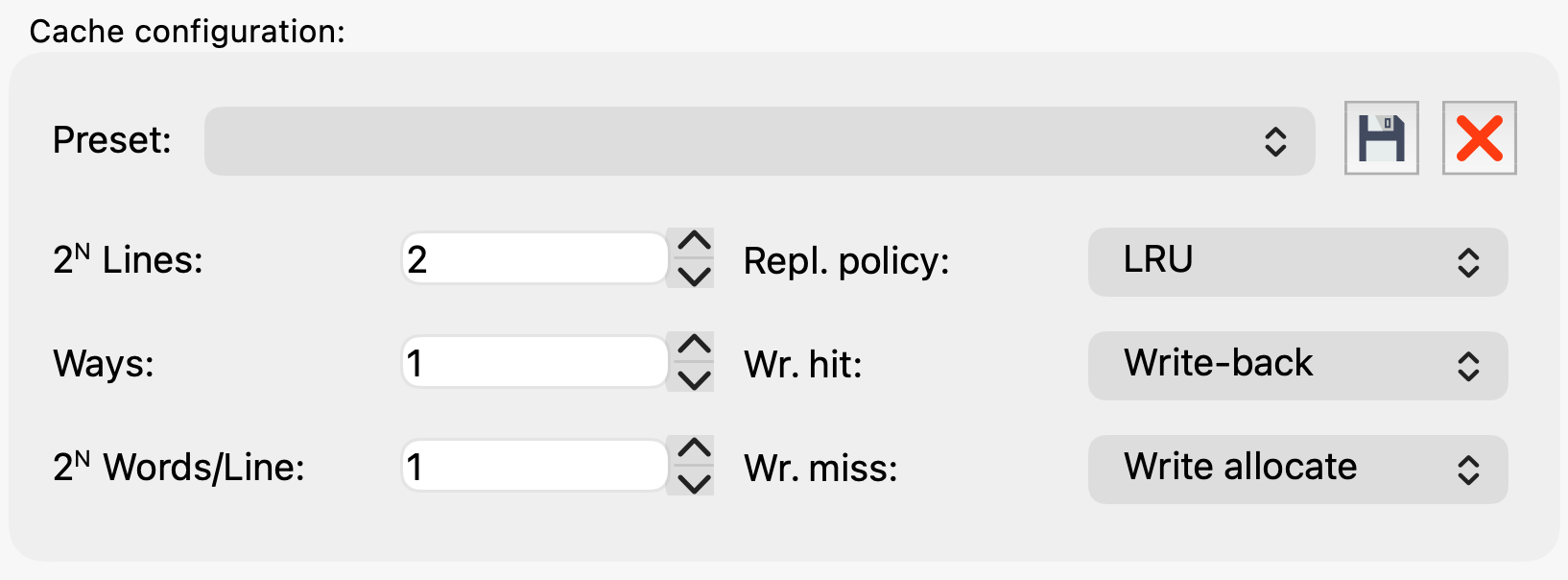

Figure 8.5: Cache configuration parameters in Ripes.

Key parameters:

• $2^N$ Sets: number of sets
• Ways: associativity
• $2^N$ Words per Line: words per cache line (block size)

Typical mappings (let $B$ be number of blocks and $N$ be associativity):

Mapping	$2^N$ Sets	Ways	$2^N$ Words/Line
Direct-mapped	$\log_2 B$	1	$2^M$
$N$-way set-assoc	$\log_2 (B/N)$	$N$	$2^M$
Fully assoc	0	$B$	$2^M$

Table 8.1: Typical Ripes cache parameter settings for common mappings (block size chosen as needed).

Cache View

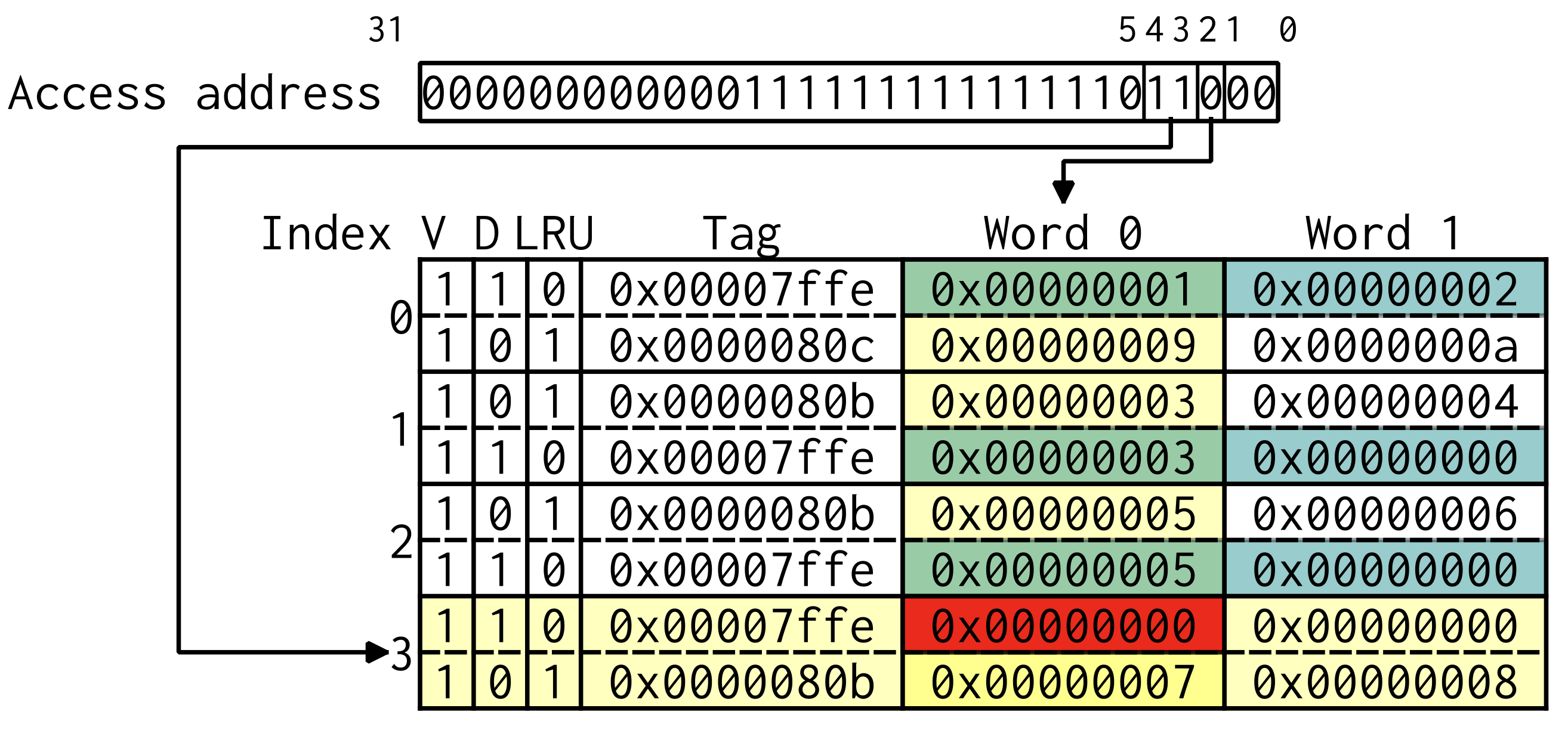

Figure 8.6: Ripes Cache View.

Cache View shows sets/ways/lines and state bits:

• V (valid)
• D (dirty, for write-back)
• Tag
• Words in the line

When using LRU with associativity > 1, an LRU field appears to indicate relative recency.

Ripes highlights accesses:

• yellow: candidate lines in the indexed set
• green: hit
• red: miss
• blue: dirty line (write-back)

Hovering shows the corresponding memory address; clicking can locate it in the memory view.

Statistics and plots

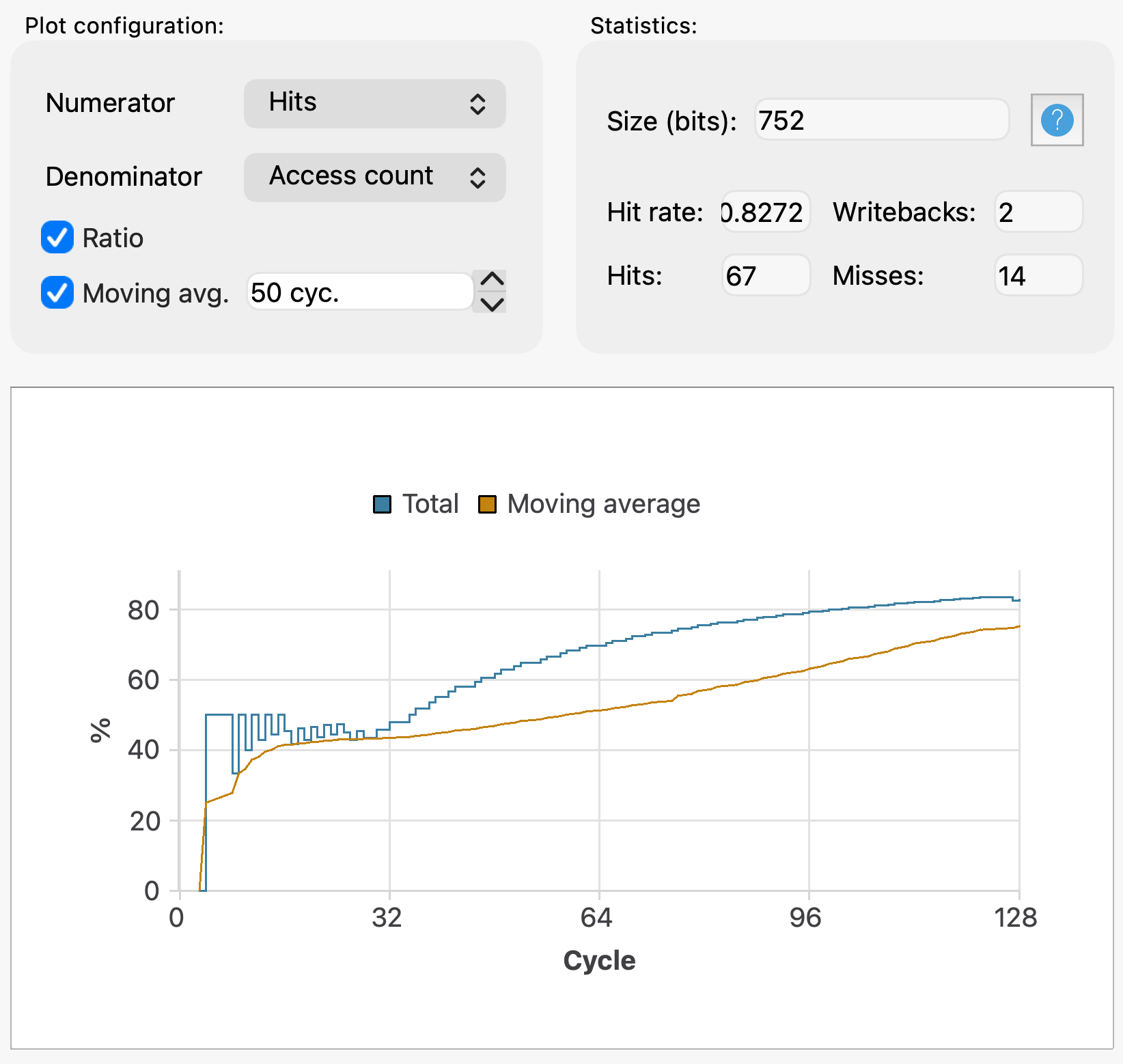

Figure 8.7: Cache statistics and plotting in Ripes.

Common counters:

• Reads, Writes
• Hits, Misses
• Writebacks (write-back mode)
• Access count

You can plot ratios such as Hit rate = Hits / Access count (optionally with moving average).

Experiment: Cache mapping behavior

Objectives

• Observe behavior under different mappings.
• Compare hit rates under direct-mapped / set-assoc / fully-assoc.
• Understand the impact of words/line and associativity.

Environment

• Simulator: Ripes
• CPU model: Single-Cycle Processor

Task 1: Sequentially read 128 integers

Program:

    li   t0, 0
    li   t1, 128

loop:
    lw   t2, 0(t0)
    addi t0, t0, 4
    addi t1, t1, -1
    bnez t1, loop

end:
    j    end

Run with:

• Words/Line = 1 and 2
• For each block size:
  • direct-mapped (total 64 words)
  • 2-way set-assoc (total 64 words)
  • fully-assoc (total 8 words)

Record hit rate and observe fills/evictions.

Task 2: Two-phase access patterns

Use the two-phase program from the manual (phase 1: repeated range; phase 2: alternating two ranges). Vary Words/Line = 2 and 4 and compare mappings.

Results

• Hit-rate statistics for both tasks and all configurations.
• Hit-rate curve for Task 2.
• At least one Cache View screenshot explaining a representative hit/miss behavior.

Questions

1. In Task 1 with Words/Line = 1, why might the hit rate be 0 for sequentially reading 128 integers?
2. Must Ways be a power of two? Why?
3. Why does increasing Words/Line change hit rate in Task 1?
4. How do phase 1 and phase 2 differ, and how is that reflected in hit-rate curves?
